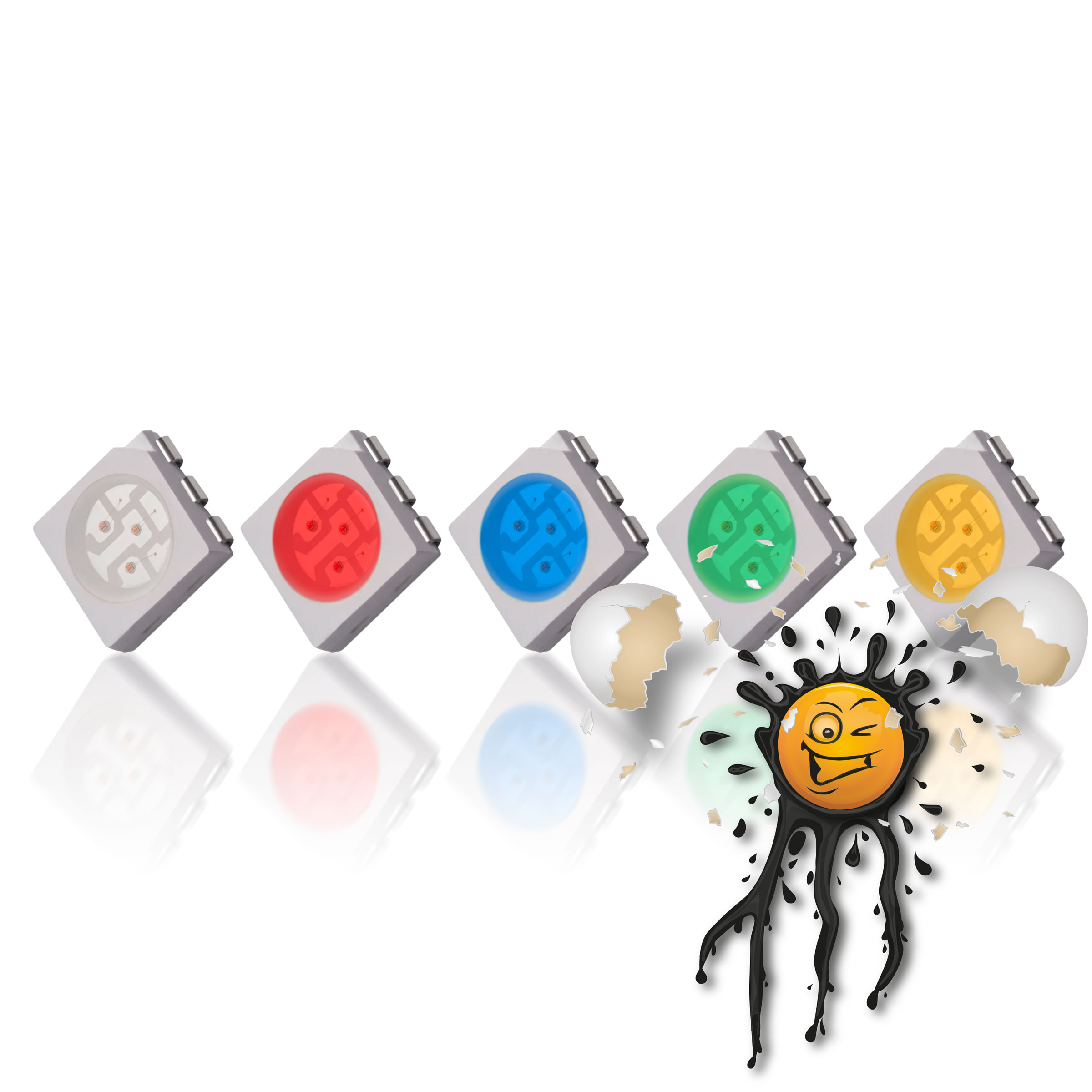

20 Stück 5050 SMD PLCC6 LED in den Farben rot grün gelb blau weiß

1,42 1,48

20 Stück 5050 PLCC6 SMD LED in den Farben rot grün gelb blau weiß

Beschreibung





20 Stück 5050 PLCC6  SMD LED in den Farben rot grün gelb blau weiß

Sensoren
Sensors

20 Stück 5050 PLCC6 SMD LED 20mA wie folgt verfügbar

  • Farbe blau 455-465 nm 3,0-3,2V Leuchtstärke 300-500 MCD 60 mA
  • Farbe grün 520-525 nm 2,8-3,0V Leuchtstärke 850-900 MCD 60 mA
  • Farbe gelb 587-590 nm 2,0-2,2V Leuchtstärke 600-800 MCD 60 mA
  • Farbe rot 620-625 nm 2,0-2,2V Leuchtstärke 300-500 MCD 60 mA
  • Farbe weiß 6500-7000 K 3,2-3,4 V Leuchtstärke 18-20 LM 60 mA





20 pcs. 5050 PLCC6 SMD LED 20mA available as follows

    • Color blue 455-465 nm 3.0-3.2V Luminosity 300-500 MCD 60 mA
    • Color green 520-525 nm 2.8-3.0V Luminosity 850-9000 MCD 60 mA
    • Color yellow 587-590 nm 2.0-2,2V Luminosity 600-800 MCD 60 mA
    • Color red 620-625 nm 2.0-2.2V Luminosity 300-500 MCD 60 mA
    • Color white 6500-7000 K 3.2-3.4V Luminosity 18-20 LM 60 mA





5050 SMD PLCC6 LED Features





VCC Spannungsversorgung 2,0 – 3,4V (basierend auf LED Waver / Farbe) VCC  / Input Voltage 2.0 – 3.4V (based on LED waver / color)
Strom 60 mA Current 60 mA
Gehäuse SMD 5050 Package SMD 5050

Zusätzliche Informationen

LED Farbe

blau/blue, gelb/yellow, grün/green, rot/red, weiß/white

CE Konformität

Declaration of Conformity RoHS

Konformitätserklärung RoHS

ManufacturerHersteller

Shenzhen Keweiming Electronics CO., Ltd.
Floor 5,Feiyada Building,Huaqiang North Street,Futian district,ShenZhen,China,518031
+86-755-83253367

EU responsible person
EU verantwortliche Person

Beauty-Point Deutschland GmbH
Markus Hahl (Produktmanagement)
Raiffeisenstraße 2-4
83607 Holzkirchen Germany

Item-ID
Artikelnummer

305870060891

Description
Beschreibung

20 Stück 5050 SMD PLCC6 LED in den Farben rot grün gelb blau weiß

The product complies with the requirements and provisions of the 2011/65/EU directive.

Das Produkt entspricht den grundlegenden Bestimmungen der Richtlinie 2011/65/EU.

The product does not contain any of the restricted substances in concentrations and applications banned by the Directive 2011/65/EU.

Das Produkt überschreitet keinen Grenzwert der unten aufgeführten Substanzen gemäß der Richtlinie 2011/65/EU.

Substance
Substanz

Concentration
Grenzwert

Substance
Substanz

Concentration
Grenzwert

Lead
Blei

0.1%

Mercury
Quecksilber

0.1%

Hexavalent Chromium
Sechswertiges Chrom

0.1%

PBB (Polybrominated Biphenyls)
Polybromiertes Biphenyl (PBB)

0.1%

PBDE Polybrominated Diphenyl Ethers
PBDE Polybromiertes Diphenylether

0.1%

Cadmium
Cadmium

0.1%

DEHP (Bis (2-Ethylhexl) phthalate)
DEHP(Bis (2-Ethylhexl) Phalat)

0.1%

BBP (Benzyl butyl phthalate)
BBP(Benzylbutylphthalat)

0.1%

DBP (Dibutyl phthalate)
DBP (Dibutylphthalat)

0.1%

DIBP (Diisobutyl phthalate)
DIBP (Diisobutylphthalat)

0.1%

The supplier of the item listed above has informed Beauty-Point Deutschland GmbH that the product is “RoHS Compliant”.

Der Lieferant dieses Produktes hat Beauty-Point Deutschland GmbH bestätigt, dass das oben genannte Produkt „RoHS konform“ ist

Dokumente

Datenblatt

Benutzerhandbuch
