ESP32-S3 N16R8 ESP32-WROOM 8M PSRAM Bluetooth 5.0 © ei-ot ®
ESP32-S3 N16R8 ESP32-WROOM 8M PSRAM Bluetooth 5.0 © ei-ot ®
|
|
ESP32-S3 Modul basiert auf dem Espressif Xtensa dual core LX7 Microprozessor mit 8MB PSRAM.
Das ESP32-S3 eignet sich für
- Espressif ESP-IDF SDK
- Python
- Python Thonny
- CircuitPython
- Espressif IDF
- Arduino (Espressif ESP32 Arduino Core 2.0.3 und höher)
- Tasmota (tasmota32s3- binaries)
Die ESP32-S3 LX7 Xtensa® Dual Core 32bit MCU erreicht bis zu 240MHz.

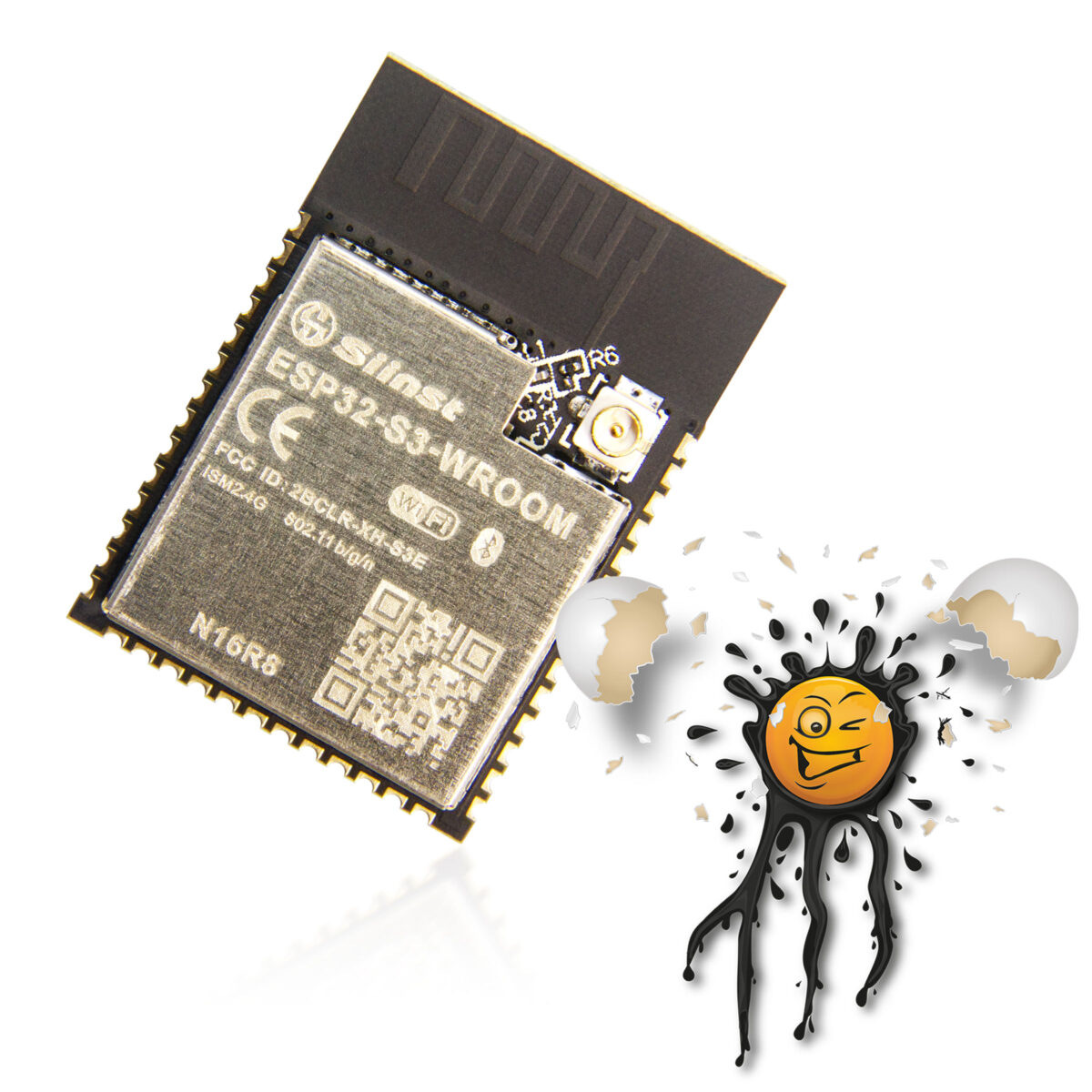

ESP32-S3 N16R8 Modul
Das ESP32-S3 Modul unterstützt
- 802.11 b/g/n Standard
- HT40 WLan Transceiver
- Bluetooth bis 5.0
- Takfrequenz 240MHz
- SRAM 512kBytes
- 8MB PSRAM
- bis zu 45 GPIO
- unterstützte Schnittstellen
SPI SD Karte,
UART,
SPI,
SDIO,
I2C,
LED PWM,
Motor PWM,
I2S,
IR,
pulse counter,
GPIO, capacitive touch sensor,
ADC 12-bit (bis zu 20 Kanäle),
DAC,
Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)
|
ESP32-S3 Module based on Espressif dual core LX7 MCU with 8MB PSRAM .The ESP32-S3 Developmnet Baord supports
- Espressif ESP-IDF SDK
- Python
- Python Thonny
- CircuitPython
- Espressif IDF
- Arduino (Espressif ESP32 Arduino Core 2.0.3 and later)
- Tasmota (tasmota32s3- binaries)
The ESP32-S3 LX7 Xtensa® Dual Core 32bit MCU supports up to 240 MHz.
ESP32-S3 N16R8 Modul
The ESP32-S3 Module supports
- 802.11 b/g/n Standard
- HT40 WLan Transceiver
- Bluetooth up to 5.0
- Frequency 240MHz
- SRAM 512kBytes
- 8MB PSARM
- up to 45 GPIO
- supported Interfaces
SPI SD Karte,
UART,
SPI,
SDIO,
I2C,
LED PWM,
Motor PWM,
I2S,
IR,
pulse counter,
GPIO, capacitive touch sensor,
ADC 12-bit (up to 20 channels),
DAC,
Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)
|
- supports up to 45 GPIO
- CPU / MPU:
Frequency: up to 240 MHz. based on Xtensa LX7
448 KByte ROM size
520 KByte SRAM size
8MB PSRAM
- 802.11 b/g/n/e/i protocol
- supports Wi-Fi Direct (P2P)
- soft-AP Integrated TCP/IP protocol stack
- 802.11 n (2.4 GHz), up to 150 Mbps
- 802.11 e: QoS for wireless multimedia technology
- Block ACK
- Fragmentation and defragmentation
- Automatic Beacon monitoring/scanning
- 802.11 i security features: pre-authentication and TSN
- Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
- Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
- UMA compliant and certified
- Antenna diversity and selection
- Compliant with Bluetooth v4.2 BR/EDR and BLE specification
- deep sleep current of < 2.5uA
- Class-1, class-2 and class-3 transmitter without external power amplifier
- Enhanced power control
- +10 dBm transmitting power
- NZIF receiver with -98 dBm sensitivity
- Adaptive Frequency Hopping (AFH)
- Standard HCI based on SDIO/SPI/UART
- High speed UART HCI, up to 4 Mbps
- BT 4.2 controller and host stack
- Service Discover Protocol (SDP)
- General Access Profile (GAP)
- Security Manage Protocol (SMP)
- Bluetooth Low Energy (BLE)
- ATT/GATT
- HID
- All GATT-based profile supported
- SPP-Like GATT-based profile
- BLE Beacon
- A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
- CVSD and SBC for audio codec
- Bluetooth Piconet and Scatternet
|
|
